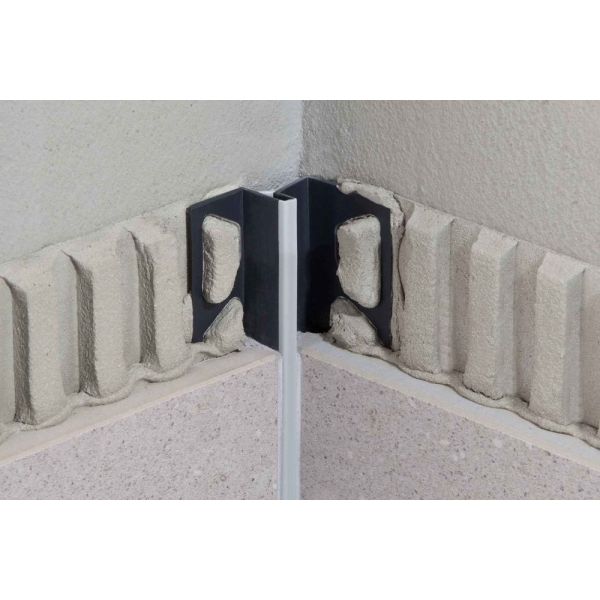

Schluter DILEX EKE Internal Movement Joint (See Options)

How to install this product:
Select Schlüter-DILEX-EKE according to the tile thickness.
The profile height “U” must be sufficient to enable insertion of the tile into the chamber (e.g. U 11 for a tile thickness of approx. 8–10 mm)
Firmly press the profile into the adhesive and trowel mortar over the profile anchoring legs.
Install the tiles on one side, leaving a joint of approx 2 mm between the tiles and the profile.
Insert the cut edge of the tile into the profile chamber on the other side, using a sufficient amount of adhesive to completely fill the space between the rear wall of the chamber and the tile.
Completely fill the space between the profile and the tile with grout.
How to look after this product:
Schlüter-DILEX-EKE is resistant to fungi and bacteria, and require no special maintenance or care.
They can be cleaned with regular household detergents when cleaning the tile covering.
