Coextruded Bath Seal Profile
Genesis P.V.C. Seal Under / Over Tile SBS and SPS are coextruded bath seals, designed to create an attractive seal around the perimeter of the bath or shower.

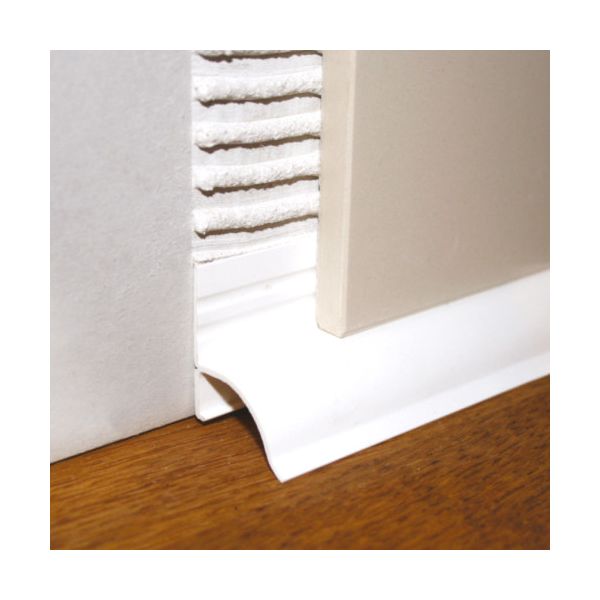

The SBS profile can be fitted after the tiles have been fixed or during tiling with the tile fixed over the specially designed flat top step of the profile.
The SPS profile is designed to fit during tiling with the tile fixed over the specially designed flat top step of the profile.
Installation:
1. Cut to length allowing mitres for corners, although mitre cutting can be avoided by using the Tile Seal mitre Piece and End Caps.
2. Pre-weight bath or shower tray by standing in whilst fixing.
3. Before fitting the last row of ceramic tiles, tack seal into the internal angle, simultaneously bedding the leg into the adhesive. Ensure the leg rests on the base confirming the seal is fully compressed.
4. Fix last row of tiles, bringing tile to rest on the Tile Seal. Grout according to manufacturers instructions.
| Power Options | N/A |
|---|---|
| Select Part | N/A |
| Select Colour | N/A |
| Colour | White |
| Product Code | SBS |
| Select Size | N/A |
| Manufacturer | Genesis |
