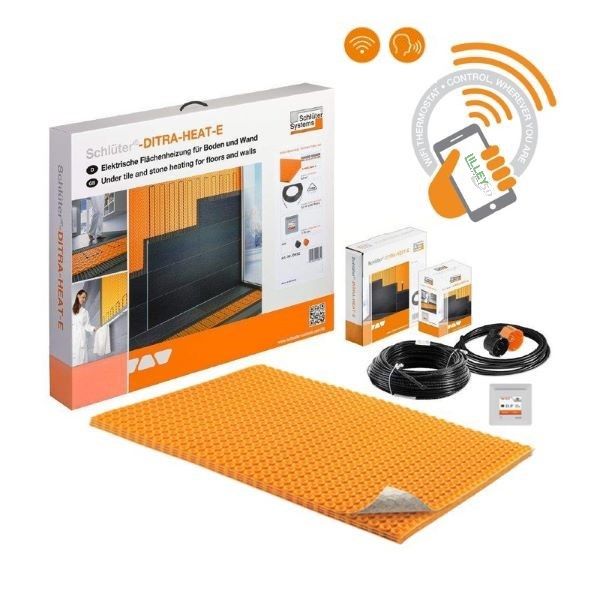

Schluter Ditra Heat E Duo S Under Floor and Wall Heating Kits (See Options)

Schlüter®-DITRA-HEAT-E-DUO-S
A polypropylene membrane with a cut-back stud structure and a special 2 mm anchoring fleece laminated on the underside
Reduces impact sound by 13db and produces a faster heat-up response.
The substrate for the installation must be level and load bearing
Schlüter DITRA-HEAT is installed in thin-bed tile adhesive suitable for the substrate with a 6mm notched trowel.
The insulated anchoring fleece on the underside is fully embedded into the adhesive.
Floor areas the heating cables can be installed immediately with a spacing of 9cm (every third stud ≙ 136W m²)
Wall areas the heating cables can be installed once the adhesive is set with a spacing of 6cm (every second stud ≙ 200W m²)
The tile or stone covering is installed directly over Ditra Heat with a suitable cement based adhesive

Kit Sizes:
1.5m2 coverage / 1.1m2 heated floor or 0.7m2 heated wall / 2 mats
2.3m2 coverage / 1.6m2 heated floor or 1.0m2 heated wall / 3 mats
3.1m2 coverage / 2.2m2 heated floor or 1.5m2 heated wall / 4 mats
3.9m2 coverage / 2.7m2 heated floor or 1.8m2 heated wall / 5 mats
4.7m2 coverage / 3.3m2 heated floor or 2.2m2 heated wall / 6 mats
5.4m2 coverage / 3.8m2 heated floor or 2.6m2 heated wall / 7 mats
6.2m2 coverage / 4.4m2 heated floor or 2.9m2 heated wall / 8 mats
7.0m2 coverage / 5.0m2 heated floor or 3.3m2 heated wall / 9 mats
7.8m2 coverage / 5.5m2 heated floor or 3.7m2 heated wall / 10 mats
